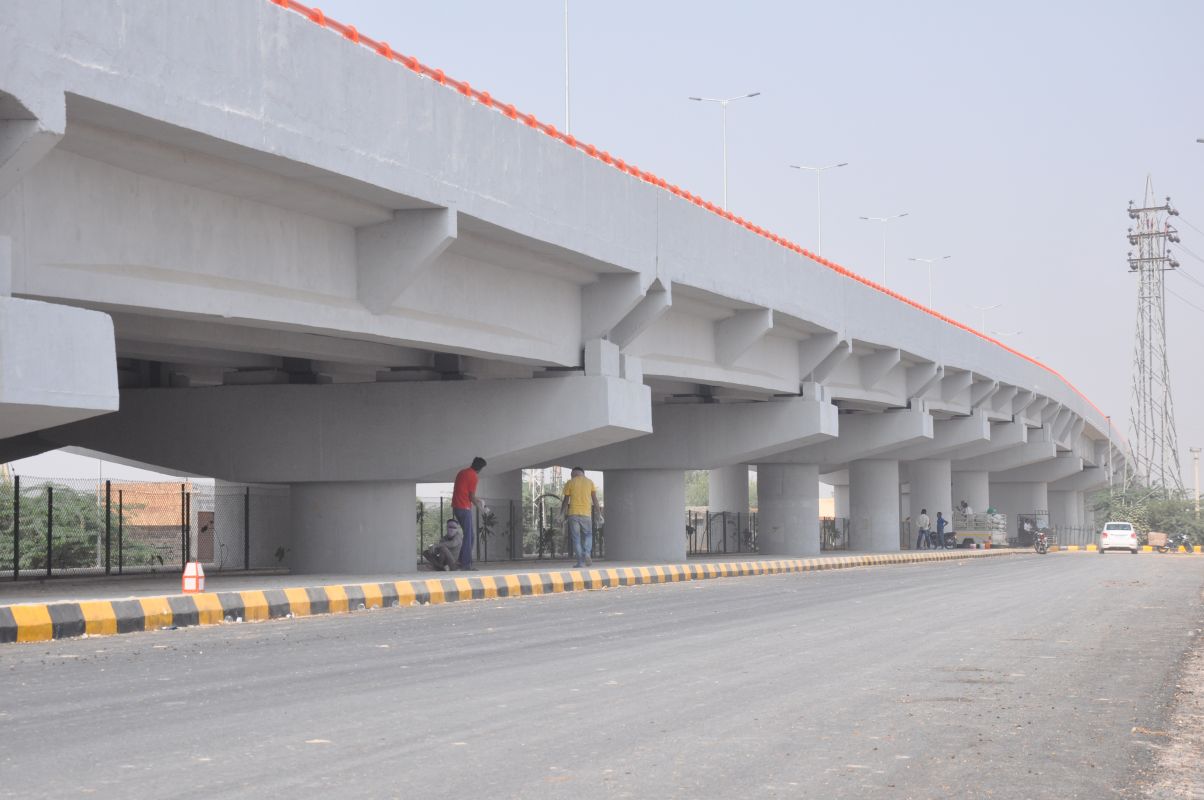

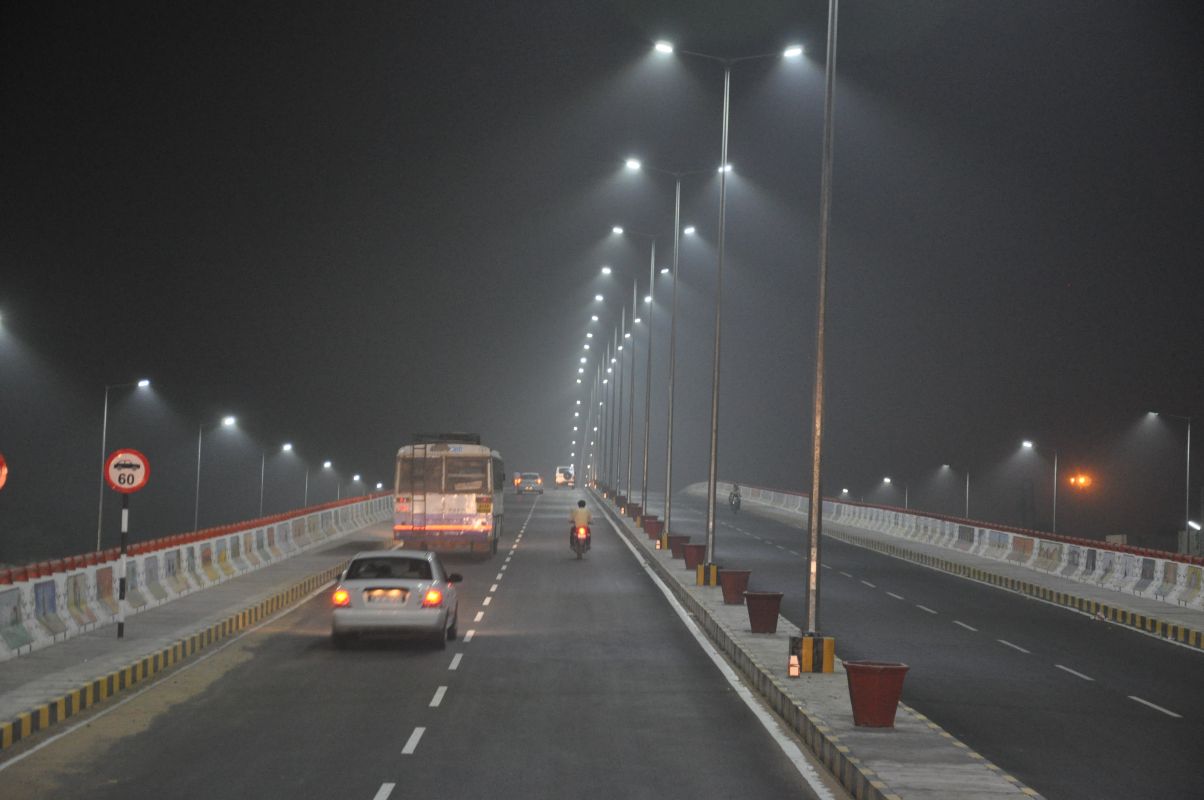

4-Lane ROB in lieu of LC No. 4 at Bikaner in Rajasthan under Bikaner Division, NWR on Cost Sharing basis.
SALIENT FEATURES OF THE ROB:
|
S. No. |
Description |
Remarks |
|
1. |
LC No. |
No. 4, Poogal Road |
|
2. |
Location |
Railway Between TP No. 4/7-8 |
|
3. |
Name of Railway Block Section |
Nall – Lalgarh Sect. of NWR |
|
4. |
Tehsil / District |
Bikaner |
|
5. |
ROB Length |
694.605 m (Ch. 133.705 to 828.310) |
|
6. |
Total no. of span |
16 Nos. |
|
7. |

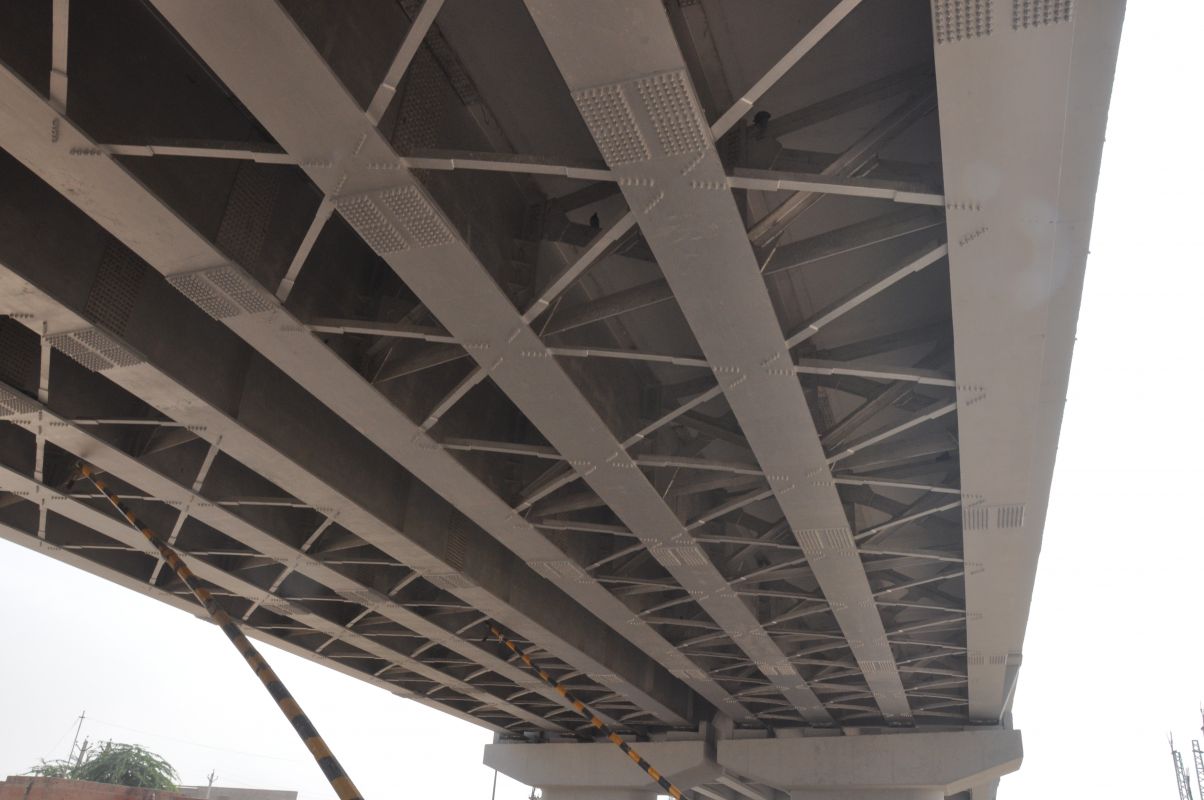

Railway span arrangement |
1 x 37.200 m (SK) / 35.910 m (SQ) |
|
8. |
Viaducts span arrangement |
15 no. Spans 7 x 21.6 m & 1 x 15.6 m (Poogal Side) 6 x 21.6 m & 1 x 30 m (Bikaner Side) |
|
9. |
Length of Reinforced Earth Wall: |
167.233 m (Poogal Side) 164.972 m (Bikaner Side) |
|
10. |
Skew Angle ROB |
15.13° |
|
11. |
Approach Gradients |
1 in 30 |
